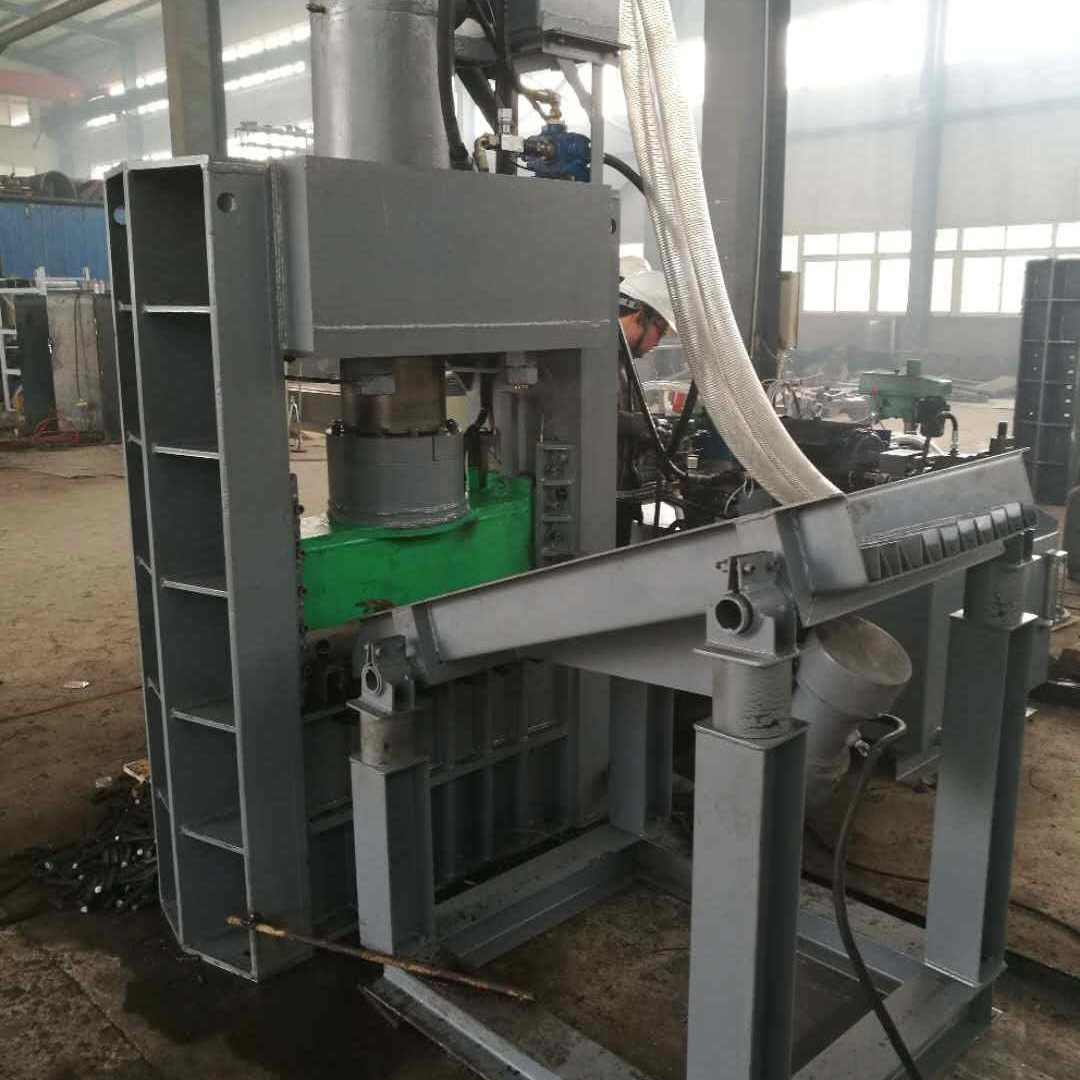

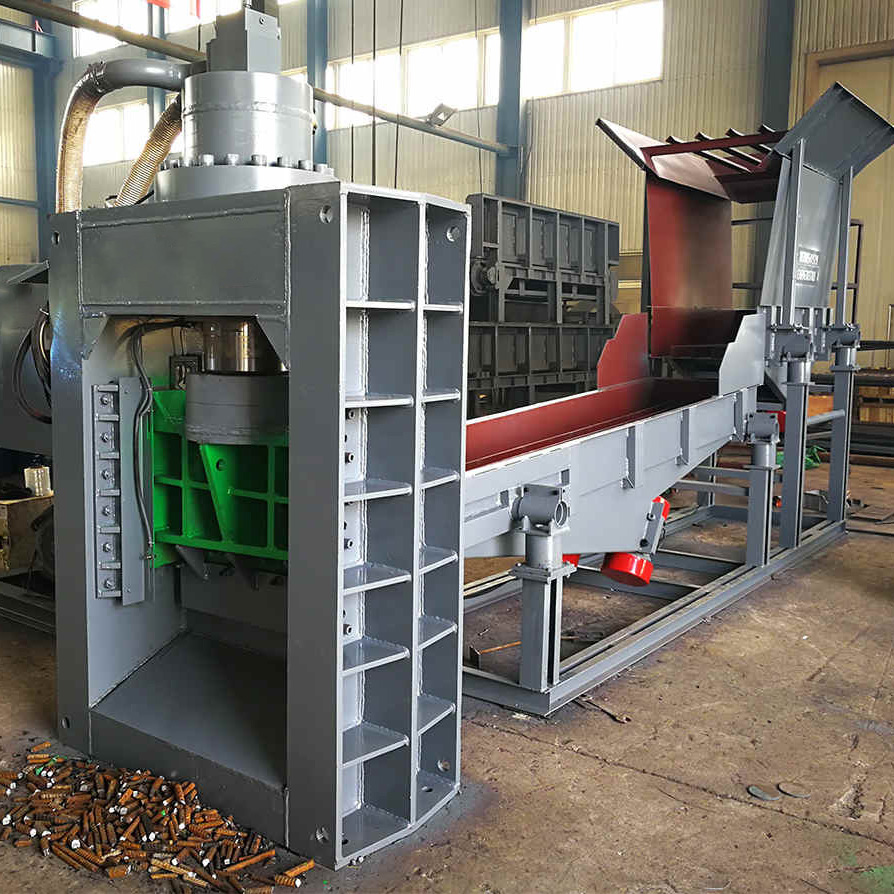

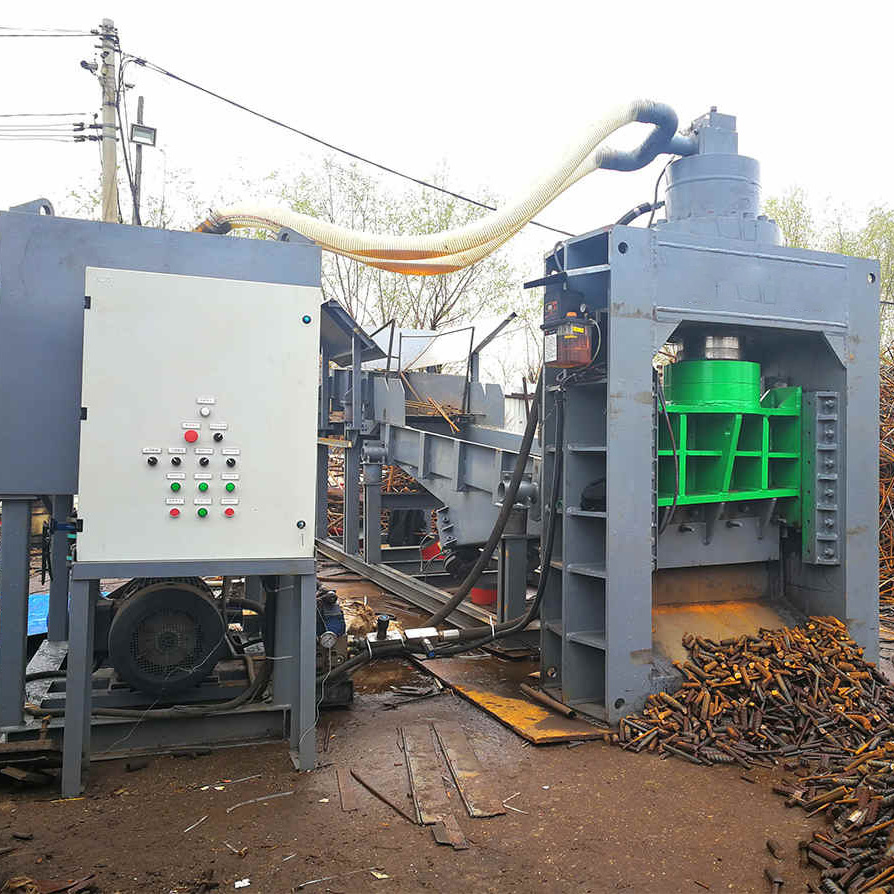

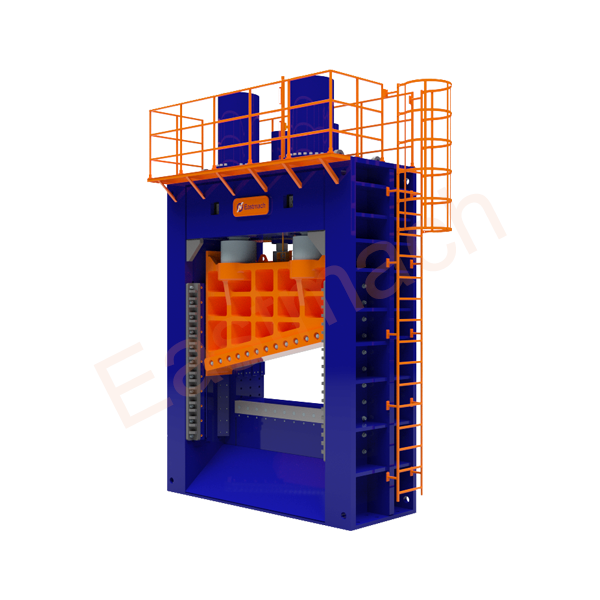

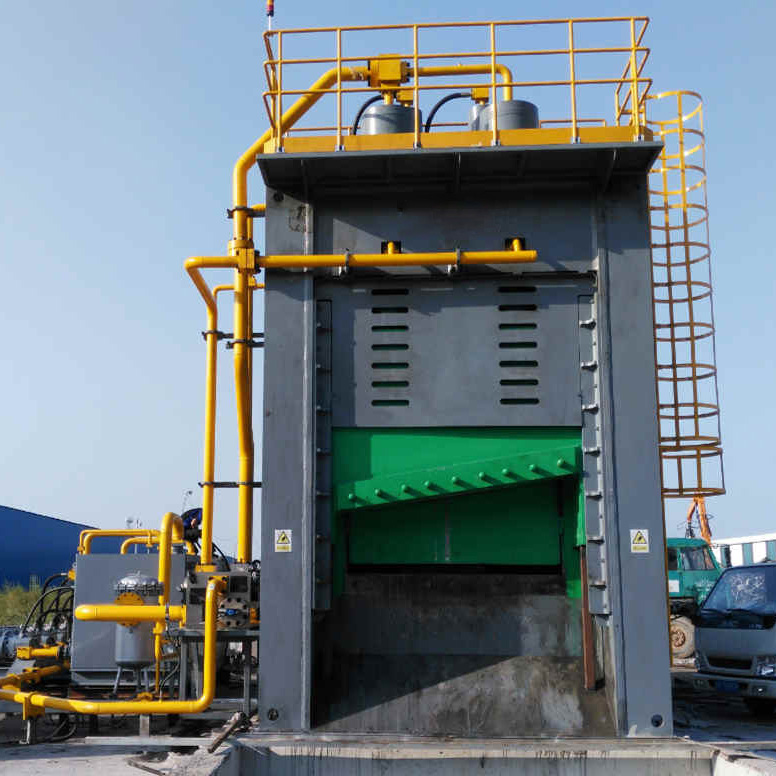

Hydraulic Gantry Shear for sale

Hydraulic Gantry Shear is suitable for pre compression and shear of various low-carbon scrap steel, scrapped automotive casings, metal structural components, etc.

The product has the following characteristics:

1. Install high-strength wear-resistant alloy steel plates in areas prone to wear and tear, effectively extending the service life of the equipment;

2. The shear slider guide rail and shear oil cylinder adopt automatic lubrication to prevent dry friction damage;

3. The intelligent control system provides optimal shear control and reduces the idle stroke of the shear cylinder;

4. The maximum cutting angle can reach 12 degrees, with strong cutting ability.

WhatsApp

WeChat

product details

Product Parameter

最大产量（t/h） Maximum output （t/h）	剪刀宽度（mm） Scissor width （mm）	剪刀开口（mm） Minimum opening （mm）	剪切能力（mm） Shearing capacity（mm）			剪切频率（次/min） Shear frequency（times/min）	料仓尺寸（mm）Silo size（mm）	送料形式 Feeding form	主电机Main motor
最大产量（t/h） Maximum output （t/h）	剪刀宽度（mm） Scissor width （mm）	剪刀开口（mm） Minimum opening （mm）	圆钢round steel	方钢square steel	钢板 steel plate	剪切频率（次/min） Shear frequency（times/min）	料仓尺寸（mm）Silo size（mm）	送料形式 Feeding form	主电机Main motor
3-4	1300	370	φ65	50×50	35×800	3~4	4000×1400×400	链条推料	2×30KW
6-10	1700	480	φ90	80×80	50×1000	3~4	6000×1600×800	链条推料	2×45KW
8-12	1720	580	φ120	100×100	55×1200	3~4	8000×1600×850	链条推料	3×45KW
12-15	1920	580	φ140	120×120	60×1900	3~4	8000×2000×900	链条推料	5×45KW
15-20	2130	680	φ160	140×140	70×1900	3	8000×2000×900	链条推料	5×45KW
18-23	2130	680	φ180	150×150	80×1900	3	8000×2000×1200	链条推料	7×45KW
20-25	2130	680	φ210	180×180	110×1900	3	10000×2500×1200	链条推料	8×45KW
24-30	2130	680	φ225	200×200	130×1900	3	10000×2500×1200	链条推料	10×45KW
30-38	2130	680	φ250	220×220	150×1900	3	10000×2500×1200	链条推料	12×45KW

Product Description

Hydraulic Gantry Shear is suitable for pre compression and shear of various low-carbon scrap steel, scrapped automotive casings, metal structural components, etc. Yantai Huida Intelligent Equipment Co., Ltd. is a company specialized in and dedicated to scrap steel processing, automobile recycling, renewable resource utilization, environmental protection and energy-saving equipment. All products have undergone quality control throughout the entire process from accessory procurement to product delivery, and have obtained ISO9001 quality management system certification. We continuously break through and innovate in professional technology, introducing 6 R&D and design personnel with high-end skills and professional knowledge, and having nearly 50 professional processing technicians. In addition, we pay more attention to supplier management and establish a series of management plans to ensure product quality at the source. We have established long-term and stable cooperative relationships with major well-known raw material and supporting companies to ensure product quality and project schedule.
