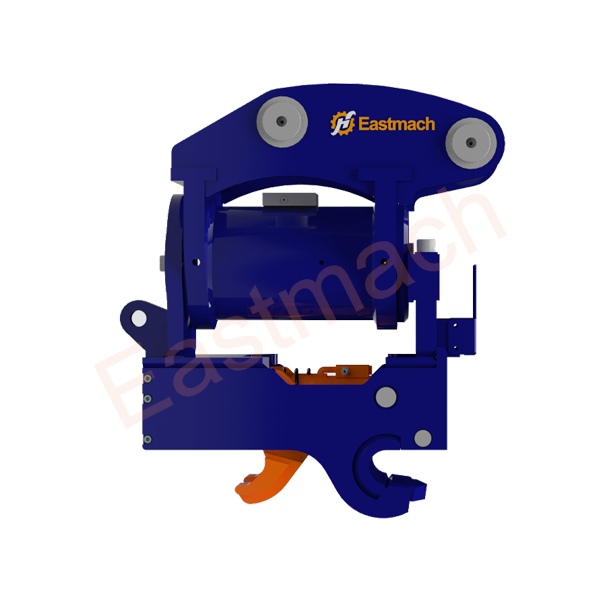

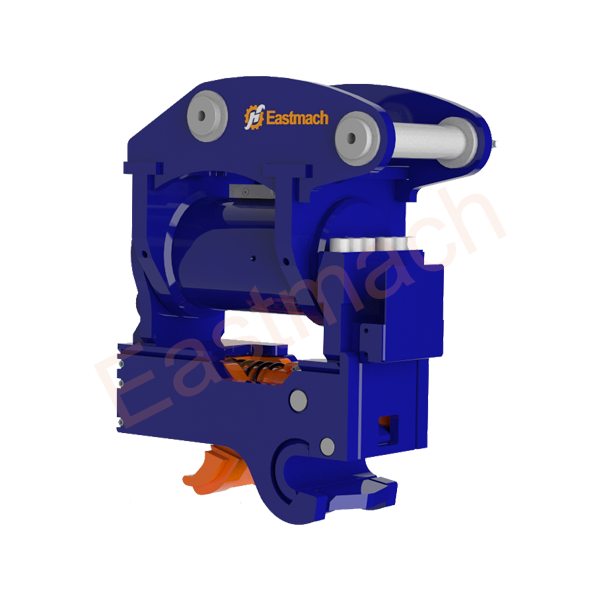

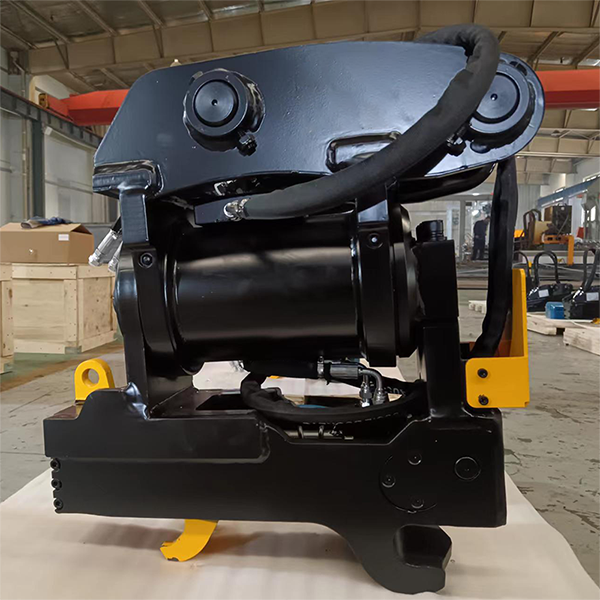

OEM high-quality Tillt Coupler for excavator for sale
Product Parameter
| Item | Unit | HDTC-00 | HDTC-00s | HDTC-01 | HDTC-02 | HDTC-04 | HDTC-06 | HDTC-06s | HDTC-08 | HDTC-09 | HDTC- 10 |
| Tilt Degree 摆动角度 |
° | 180° | 180° | 180° | 180° | 180° | 180° | 180° | 140° | 140° | 140° |
| Drive Torque 驱动力矩 |
NM | 927 | 1630 | 1630 | 4400 | 7190 | 10623 | 14688 | 18680 | 24987 | 43000 |
| Tilt Working Pressure 摆动工作压力 |
bar | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 |
| Tilt Necessary Flow 摆动必须流量 |
lpm | 2-4 | 5-16 | 5-16 | 5-16 | 15-44 | 19-58 | 19-58 | 35-105 | 35-105 | 35-105 |
| Quick Coupler Working Pressure 工作压力 |
bar | 25-200 | 25-200 | 25-200 | 25-200 | 25-200 | 25-200 | 25-200 | 25-200 | 25-200 | 25-200 |
| Necessary Flow 工作流量 |
lpm | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 20-30 | 20-30 | 20-30 |
| Pin Spread Range 销轴中心距范围 |
mm | 125-150 | 160-185 | 195-235 | 235-280 | 256-330 | 340-420 | / | 410-490 | 460-585 | 465-590 |
| Lift Point Capacity 吊点吊装能力 |
kg | 500 | 500 | 500 | 500 | 500 | 1000 | / | 1000 | 2000 | 2000 |
| Hitch lift capacity 连接器挂载能力 |
kg | 1000 | 1600 | 2000 | 2000 | 3000 | 5000 | / | 8000 | 12000 | 12000 |
| Suitable Excavator Weight 适配挖机重量 |
ton | 1-1.9 | 2-2.9 | 3-3.9 | 4-5.9 | 6-9.9 | 10-14.9 | 15-17.9 | 18-23.9 | 24-29.9 | 30-36.9 |
| Pin reference diameter 销轴参考轴径 |
mm | 20-30 | 30-35 | 35-40 | 40-45 | 50-55 | 60-65 | 70-80 | 80 | 90 | 90- 100 |
| Weight 自重 |
kg | 63 | 77 | 90 | 160 | 210 | 410 | / | 630 | 950 | 1250 |
Product Description
The Tillt Coupler is suitable for excavators weighing 0.8-25 tons. The Tillt Coupler produced by Yantai Huida Intelligent Equipment Co., Ltd. is suitable for high-tech assisted rapid operations with different angle requirements. It has high flexibility and a wide range of applications. Made of high-quality steel, with high strength, wear resistance, and guaranteed quality. In addition, we pay more attention to supplier management and establish a series of management plans to ensure product quality at the source. We have established long-term and stable cooperative relationships with major well-known raw material and supporting companies to ensure product quality and project schedule. We can also undertake different OEM needs and customize suitable products for you, with qualified product output. When the extraction work comes with differences and it is possible to dig manually, the Tillt Coupler can provide your extractor with maximum versatility: fitting tool angles, there is no need to consistently position the extractor or risk dumping the machine The HuiDa Tillt Coupler is an Excel way to transform your existing bucket into an evaporator tilt bucket
