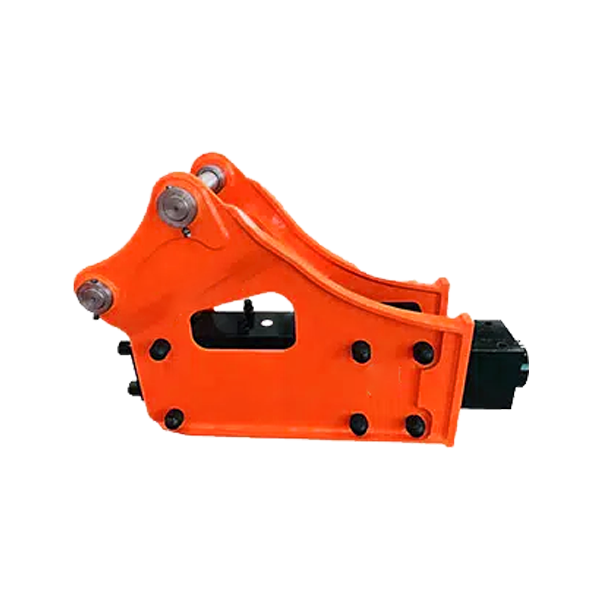

Side Type Hydraulic Rock Breaker for excavator for sale
Product parameter
Mdoel | Unit | HD400 | HD450 | HD530 | HD680 | HD750 | HD850 | HD1000 | HD1350A | HD1400A | HD1500 | HD1550 | HD1650 | HD1750 | HD1850 | HD1950 |
Suitable Excavator Weight 适配挖机重量 |
ton | 0.8-2.5 | 1.2-3.0 | 2.5-4.5 | 4.0-7.0 | 6.0-9.0 | 7.0-14.0 | 11-16 | 18-26 | 18-26 | 27-35 | 28-35 | 30-40 | 36-40 | 40-55 | 45-60 |
Chisel Diameter 直径 |
mm | Φ40 | Φ45 | Φ53 | Φ68 | Φ75 | Φ85 | Φ100 | Φ135 | Φ140 | Φ150 | Φ155 | Φ165 | Φ175 | Φ185 | Φ195 |
Operating weight 自重 |
kg Side | 70 | 90 | 120 | 250 | 380 | 510 | 765 | 1462 | 1795 | 2144 | 2413 | 2650 | 3788 | 4516 | 5213 |
kg Top | 80 | 100 | 120 | 298 | 375 | 577 | 890 | 1515 | 1808 | 1972 | 2632 | 3065 | 3909 | 4703 | 5435 | |
kg Box | 90 | 126 | 152 | 295 | 375 | 571 | 861 | 1500 | 1801 | 2071 | 2555 | 2833 | 3991 | 4886 | 5610 | |
Height 高度 |
mm | 1135 | 1213 | 1317 | 1620 | 1899 | 2161 | 2316 | 2813 | 2813 | 3063 | 3115 | 3275 | 3556 | 3852 | 3986 |
Required oil flow 流量 |
l/min | 15-30 | 20-40 | 25-50 | 40-70 | 50-90 | 60-100 | 80-110 | 130-150 | 120-180 | 160-180 | 200-240 | 220-260 | 260-280 | 260-300 | 280-310 |
Operating pressure 工作压力 |
bar | 90-120 | 90-120 | 90-120 | 110-140 | 120-150 | 130-160 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 180-200 | 220-260 | 240-280 | 240-300 |
Impact Rate 打击频率 |
bpm | 800-1400 | 700-1200 | 600-1100 | 500-900 | 400-800 | 400-800 | 350-700 | 350-600 | 350-500 | 300-450 | 300-450 | 200-350 | 200-350 | 200-250 | 180-200 |
Hose diameter 软管直径 |
inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 1 | 1 | 1 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 | 1 1/4 |
Back head pressure 背压头压力 |
kg/cm2 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 6 | 16 | 8 | 16-18 | 18 | 22 | 22 | 22-24 |
Accumulator pressure 蓄能器压力 |
kg/cm2 | / | / | / | / | / | / | / | 60 | 60 | 60 | 60 | 60 | 65 | 65 | 65 |
Valve position 阀位 |
/ | Internal | Internal | Internal | Internal | Internal | Internal | Internal | External | Internal | External | Internal | Internal | Internal | External | External |
Impact power 打击力 |
joule | 200 | 300 | 300 | 650 | 700 | 1200 | 2847 | 3288 | 4270 | 5694 | 7117 | 9965 | 12812 | 16500 | 18500 |
Product Description

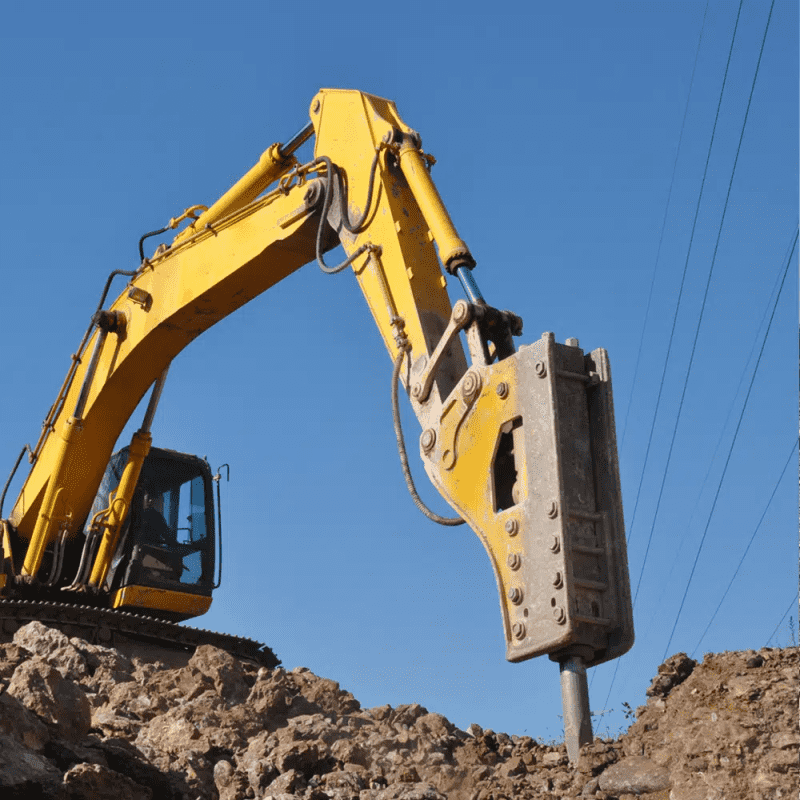

As one of the leading Hydraulic Hammer manufacturers in China,HuiDa has a full range of Hydraulic Hammers for excavators from 0.8-25 tonne. They are suitable for all kinds of brands and models of excavators.Breakers, with their advantages of safety and efficiency, have been widely used in secondary crushing in mining areas, gradually replacing secondary blasting for large block crushing. In mining operations, the application of hydraulic fracturing hammers under certain special limiting conditions presents unique advantages, especially in selective mining and non blasting mining operations, making it a new type of mining method.
We can offer the OEM/ODM services of excavators attachments. The product can be customized according to your personalized requirements. Please offer your design documents or tell us your ideas and our R&D team will do the rest.
All products have undergone the entire process of quality control from accessory procurement to product delivery, and have obtained ISO9001 quality management system certification.
"Putting customers at the center and providing attentive service" is our business philosophy, and it is also our eternal and unchanging purpose on the road of development. "Innovation and efficiency, continuous improvement, striving for excellence, and service first" are our core values.At the same time, we focus on team management and business management, establishing a comprehensive system for personnel management, quality management, safety management, and environmental management, effectively ensuring safety production and product quality, and laying a solid foundation for timely and high-quality delivery of products.
Features
1.Easy to locate and control;
2.More conducive to excavate;
3.Weight lighter, the lower risk of broken drill rode
4. High quality materials and special precision technology ensure better impact, explosive power, and stability.
5. Its high-quality high-pressure accumulator can reduce impact, increase impact energy, and make the working ability more intelligent.
