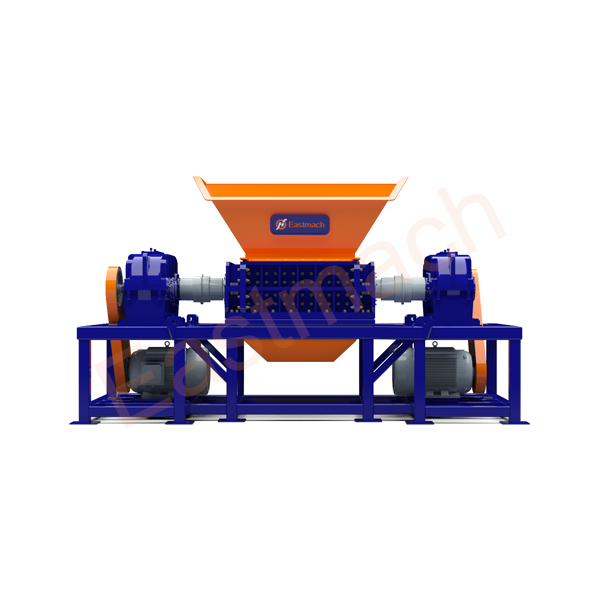

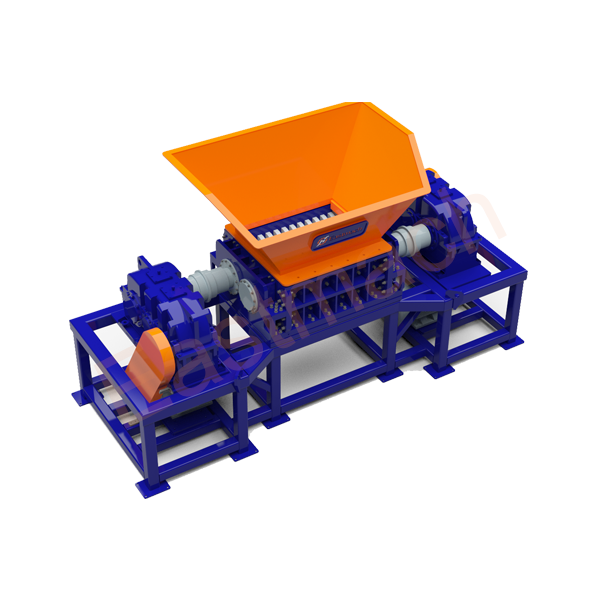

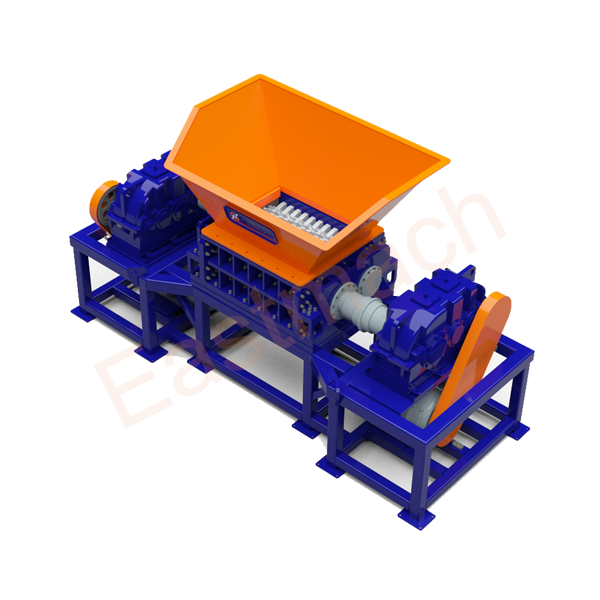

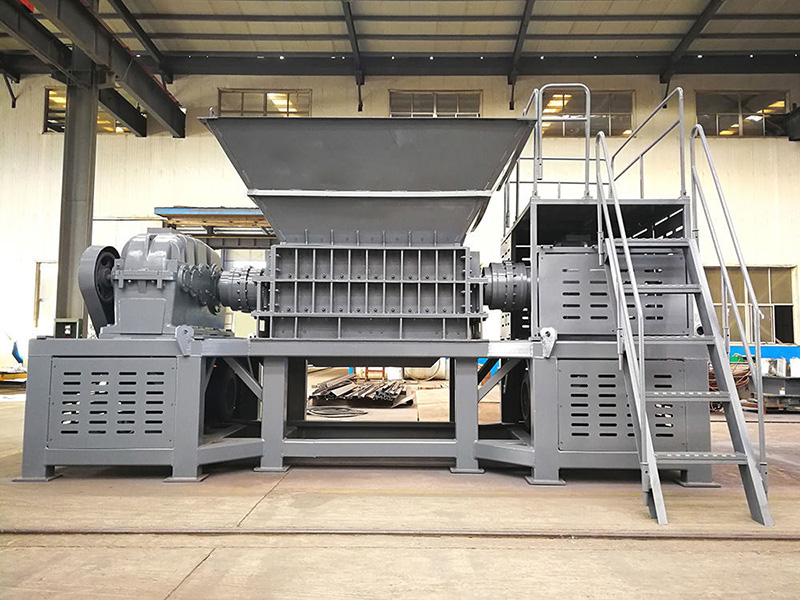

Two Shaft Metal Shredder for sale

Two Shift Metal Shredder is suitable for tearing various wood, rubber, scrap steel, scrap iron, and plastic products to the appropriate size.

The product has the following characteristics:

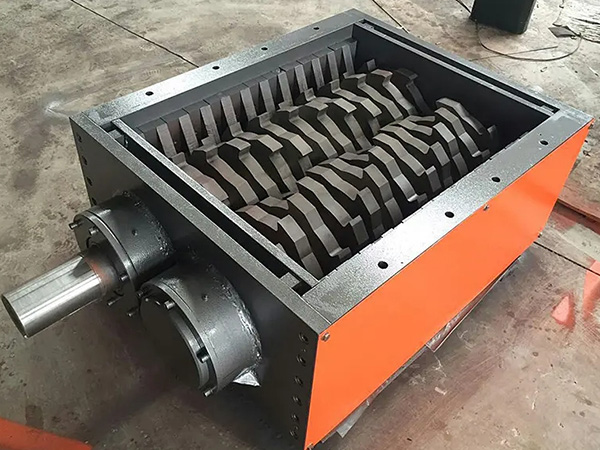

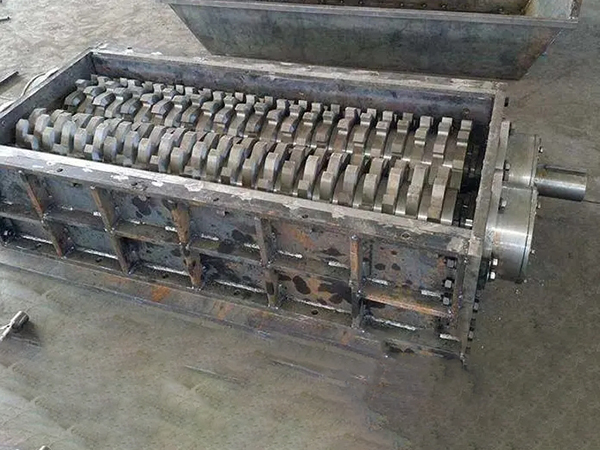

1. The blade is thick and has high crushing efficiency. The cutting tools are all cast with alloy steel, with a long service life;

2. The frame board is thick and can withstand high torque, making it very sturdy;

3. The equipment has low rotational speed, high torque, low noise, and dust that can meet environmental standards;

4. Easy to adjust, low maintenance cost, economical and durable.

WhatsApp

WeChat

product details

Product Parameter

型号	型号 Model	金属破碎机（轻型） Metal crusher machine （light type）			金属破碎机 Metal crusher machine			金属破碎机（重型） Metal crusher machine（heavy type）
型号	型号 Model	FSJA-1200	FSJA-1600	FSJA-1800	FSJB-1200	FSJB-1600	FSJB-1800	FSJC-1200	FSJC-1600	FSJC-1800
进水口宽度（mm）	Intake width(mm) 进水口宽度	1200	1600	1800	1200	1600	1800	1200	1600	1800
电机功率（kw）	Motor power（kw）电机功率	2*45	2*75	2*75	2*75	2*90	2*90	2*75	2*90	2*110
M主轴转速（r/min）	Mpeed of mainshaft(r/min) M主轴转速	12--16	12--16	12--18	8--10	8--10	8--10	5--8	5--8	5--8
滚刀直径（mm）	Hobbing cutter diameter(mm) 滚刀直径	∅450	∅500	∅500	∅500	∅600	∅600	∅500	∅600	∅600
容量（t/h）	Capacity(t/h) 容量	5--7	8--10	10--12	5--7	8--10	10--12	5--7	8--10	10--12

Product Description

Two Shift Metal Shredder is suitable for tearing various wood, rubber, scrap steel, scrap iron, and plastic products to the appropriate size. The Two Shaft Metal Shredder produced by Yantai Huida Intelligent Equipment Co., Ltd. undergoes forging, annealing, heat treatment, tempering and insulation, and is finely ground through online cutting. The gearbox is welded with steel plates, with high accuracy, contact model, low noise, and a long service life. The transmission components are connected by couplings to reduce vibration, protect the main shaft and reducer, and not damage force. The motor adopts a copper core motor to reduce energy consumption and have a longer service life.All products of Yantai Huida Intelligent Equipment Co., Ltd. have undergone quality control throughout the entire process from accessory procurement to product delivery, and have obtained ISO9001 quality management system certification.

Putting customers at the center and providing attentive service is our business philosophy, and it is also our eternal and unchanging purpose on the road of development.
